Product Overview

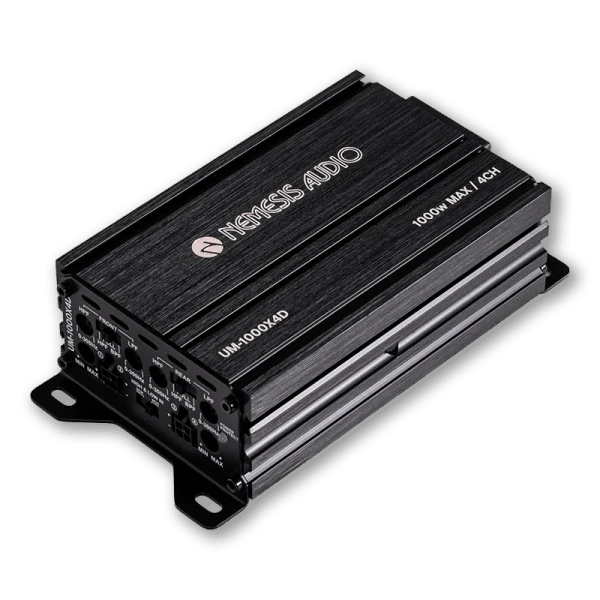

Compact 4-channel Class D amplifier with 80W x 4 at 4 ohms, 125W x 4 at 2 ohms, and 1000W max power. The Nemesis Audio UM-1000X4D is a compact 4-channel Class D amplifier designed for efficient multi-speaker power in tight installation spaces. It delivers flexible 4-channel output and bridged power capability for custom car audio builds. Specifications Amplifier Type: 4-channel Class D Max Power: 1000W RMS Power @ 4 Ohms: 80W x 4 RMS Power @ 2 Ohms: 125W x 4 Bridged Power @ 4 Ohms: 250W x 2 Frequency Response: 10Hz to 30kHz LPF Crossover Range: 0Hz to 300Hz Input Sensitivity: 0.3V to 7V Signal-to-Noise Ratio: >90dB THD: <0.3% Dimensions: 151 x 78 x 40 mm | 5.94 x 3.07 x 1.57 in This model is ideal for compact installs that still need clean four-channel power. Specifications: Channels: 4 Channel Amplifier Class: Class D Max Power: 1000W RMS Power @ 4 Ohms: 80W x 4 RMS Power @ 2 Ohms: 125W x 4 Bridged Power: 250W x 2 @ 4 Ohms Frequency Response: 10Hz to 30kHz Input Sensitivity: 0.3V to 7V Signal-to-Noise Ratio: >90dB THD: <0.3% Dimensions: 151 x 78 x 40 mm
